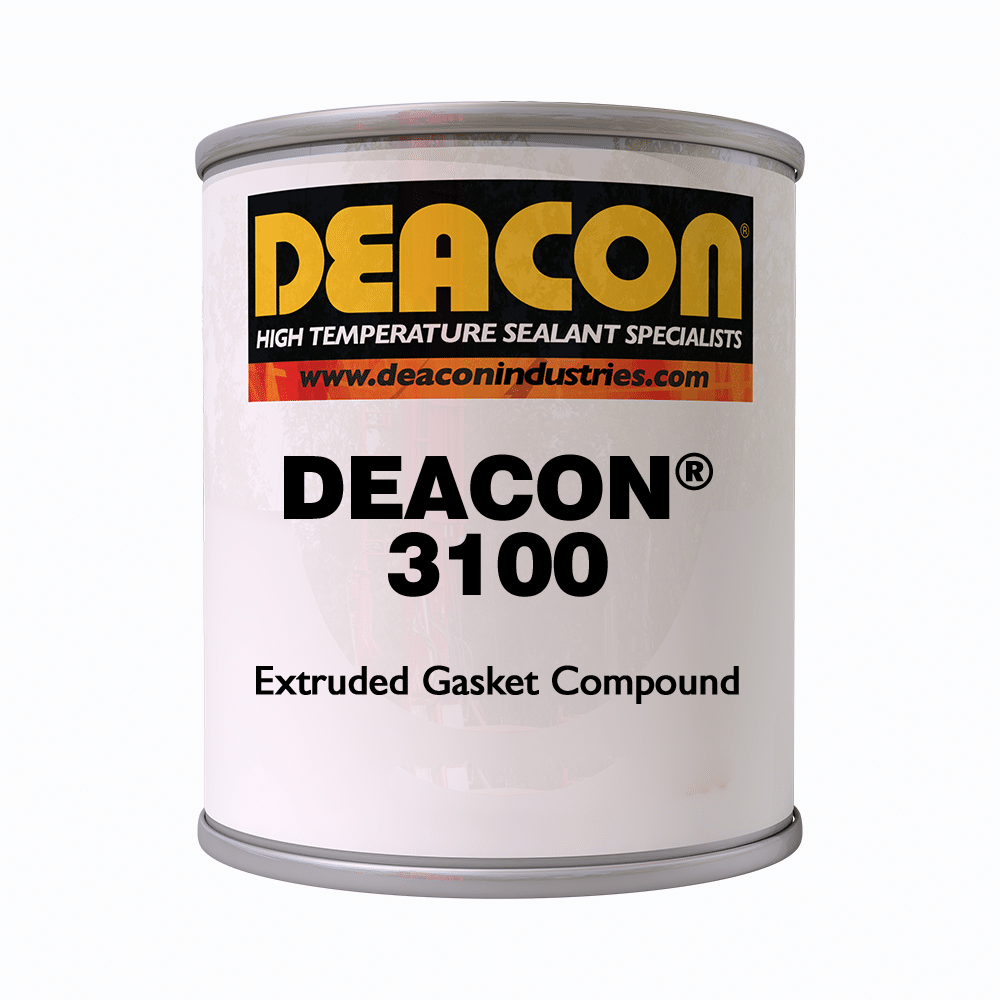

DEACON® 3100
Extruded Gasket Compound

An extruded putty-like joint sealant that can be used with or without a fabricated gasket, thus eliminating the need to inventory various gasket sizes and types. DEACON 3100 is fully compressible to 0.002 and will conform to any surface pits, steam cuts, or gaps caused by irregularities or warpage. Ideal for a gasket replacement, 3100 will achieve a leak-free seal on similar or dissimilar mating surfaces in steam, hot air, or various chemical environments. It's well suited for use on any application involving pipeline or containment vessels that direct the flow of numerous industrial substances in gaseous, liquid, or solid form. 3100 cures to a flexible leather-like consistency and will not cement joints together.

Specifications

  • Base Materials
    • Resin
  • Service Rating
    • 200°F (93°C) to 950°F (510°C)
    • Up to 1500 psi (103 Bar)

Product Numbers

United States

  • 111-3100 1/16 INCH 1 LB - 32 OZ Plugtop Can
  • 111-3100 1/8 INCH 1 LB - 32 OZ Plugtop Can
  • 111-3100 3/16 INCH 1 LB - 32 OZ Plugtop Can
  • 111-3100 1/4 INCH 1 LB - 32 OZ Plugtop Can
  • 111-3100 3/8 INCH 1 LB - 32 OZ Plugtop Can
  • 111-3100 3/8 INCH 5 LB - 1 GAL Plugtop Can
  • 111-3100 1/2 INCH 5 LB - 1 GAL Plugtop Can
  • 111-3100 3/4 INCH 5 LB - 1 GAL Plugtop Can

United Kingdom

  • 111-3100 1/16 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 1/8 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 3/16 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 1/4 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 3/8 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 3/8 INCH 5 LB - 2.27KG Plugtop Can
  • 111-3100 1/2 INCH 5 LB - 2.27KG Plugtop Can
  • 111-3100 3/4 INCH 5 LB - 2.27KG Plugtop Can

Canada

  • 111-3100 1/16 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 1/8 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 3/16 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 1/4 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 3/8 INCH 1 LB - 0.45KG Plugtop Can
  • 111-3100 3/8 INCH 5 LB - 2.27KG Plugtop Can
  • 111-3100 1/2 INCH 5 LB - 2.27KG Plugtop Can
  • 111-3100 3/4 INCH 5 LB - 2.27KG Plugtop Can
