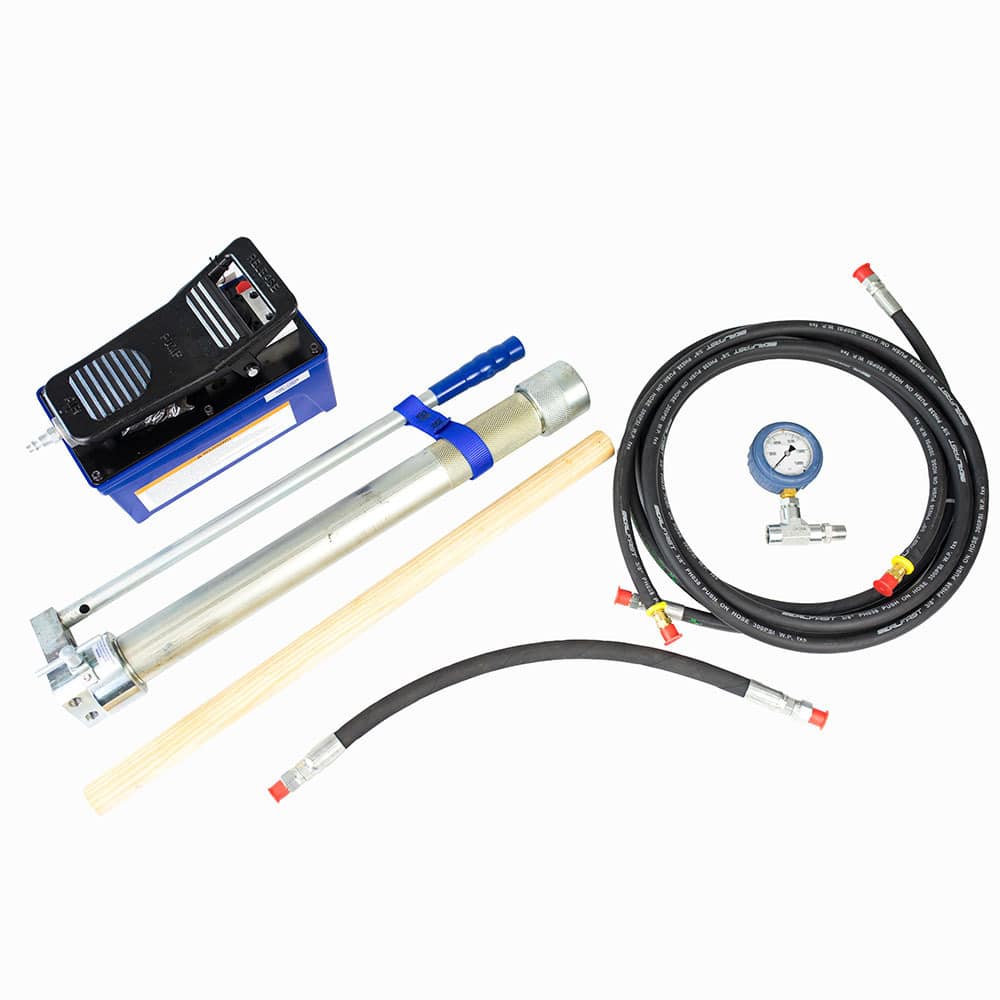

DEACON® INJECTION GUN #1700
Injection Gun

For pumping a variety of sealant material to 10,000 PSI max., with 100 PSI, 10 CFM AIR. Floating piston design | Features: Air over hydraulic operated pump. Holds 2 J-Sticks.
Operation: To load, open by-pass valve at side of gun, unscrew carrying handle, take off barrel cap, use wooden rod to push piston to bottom of barrel. Replace cap and close by-pass valve. Connect pump to air supply and unit is ready to use.
Note: An in-line air filter and lubricator should be installed as close to the unit as possible. Otherwise pump requires 4 drops of #10 oil in
air inlet for each day of use.
Performance:
Resistance (PSI) 0 5,000 10,000
Flow Rate (cu.in/min) 35 10 4
Time to empty gun (min:sec) 0:28 1:36 4:00

Specifications

  • Service Rating
    • 10,000 PSI max

Packaging

Capacity: 20" barrel – 32.5 cu inch Weight: 45.5 lbs. Gun alone is 13 lbs.

Product Numbers

United States

  • 111-1700-COMPLETE - Bucket (Black Plastic)

United Kingdom

  • 111-1700-COMPLETE - Bucket (Black Plastic)

Canada

  • 111-1700-COMPLETE - Bucket (Black Plastic)
