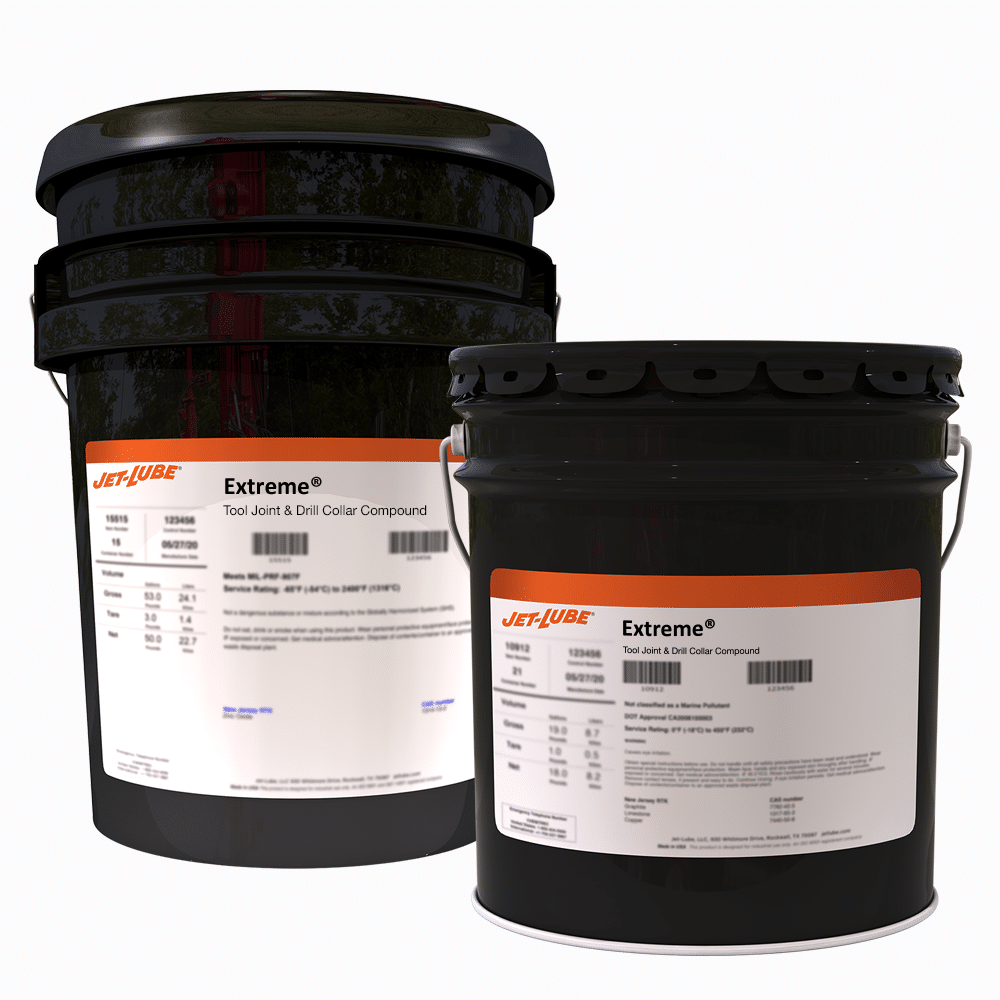

Extreme® Tool Joint & Drill Collar Compound
Offers the advantage of superior adhesion, improved extreme pressure and anti-wear properties, resistance to water wash-off, and superior rust and corrosion protection in the presence of invert or high-pH muds. The resistance also allows EXTREME to be used for up to 6 months connection storage. Its solids package is formulated to prevent excessive circumferential makeup by increasing the coefficient of friction under compressive forces.
For optimum performance on API drill string connections, EXTREME should be utilized with the thread recommended torque by multiplying the listed torque value by 1.15 or by contacting the drill pipe and connection manufacturer. Friction factors for EXTREME were developed using full scale API tool Joint connections.
Benefits
- Highly resistant to high pH drilling muds
- Brushable and stable over a wide temperature range
- Rust & corrosion inhibited
- Excellent resistance to make up downhole
- Sticks to wet joints
- Contains no lead or zinc
- Extreme-pressure additives provide additional protection against seizing and galling
- Complex grease base provides superior rust and corrosion protection
- Consistent rig floor makeup
Specifications
-
Base Materials
- Complex Soap / Petroleum
-
Friction /
Nut-Factor- 1.15 (Relative to API RP 5A3 Annex I)
-
Certifications
- Environmental Rating: UK CEFAS Group B
- Not classified as a marine pollutant - DOT Approval CA2019050504
- Conforms with API RP 5A3 for use with rotary shouldered connections
-
Service Rating
- 0°F to 450°F
- -18°C to 232°C
