Jet-Lok® III
Threadlocker / Two-Part Epoxy

JET-LOK III is a two-part, ZINC-FREE epoxy with largely non-metallic fillers that can be used to permanently lock threaded connections under normal operating conditions. Both the handy-pak and kit use a new catalyst for added pot life and durability with lower toxicity and less heat generation making it the optimum choice for any application. It is designed for use on all threaded joints or fasteners where an exceptionally strong and durable bond is required. It is especially useful on drilling tools, casing, and other tubulars where the effective prevention of joint loosening is required.

<h3>APPLICATIONS</h3>
JET-LOK III is recommended for use on casing, shoes, couplings, and collars; eliminating the need for gas/arc welding. Threadlock Handy-Pak and Kit offer a distinct advantage over welding in that threaded connections may be broken out by heating to 550°F (288°C). This product is also excellent for any application requiring a strong, permanent bond that has high vibration resistance. Being free of zinc enhances its durability in wet services.

Benefits

  • ZINC-FREE
  • 1 hr cure time
  • Complete handy-pak or kit
  • Added Pot Life and Durability with Lower Toxicity and Less Heat Generation
  • Noncorrosive
  • Economical
  • Adheres to any clean surface
  • Good for service up to 400°F (204°C)
  • Ease of application
  • Prevents back-off
  • Resistant to acids, solvents, & water
  • One Jet-Lube Jet-Lok III handy-pak will coat one 13-3/8 connection with almost zero waste

Specifications

  • Friction /
    Nut-Factor
    • Friction Factor - Rotary Shouldered Connections 0.9 – 1.0 *Noninterference (T&C) 1.3 – 2.0
  • Service Rating
    • Temperature Stability 400°F (204°C)

Product Numbers

United States

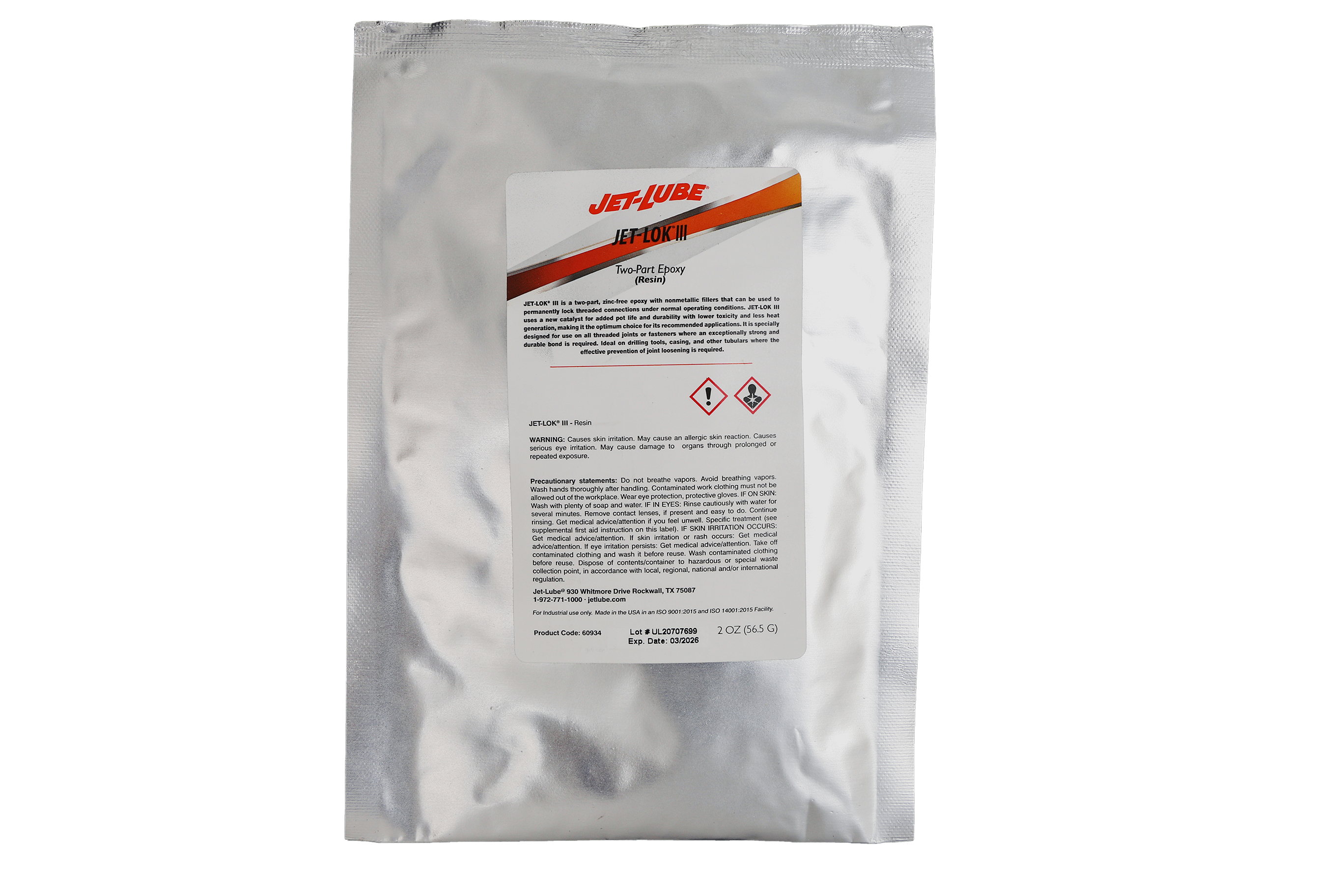

  • 60934 - HANDY-PAK (Resin & Activator) - 2 OZ - 24/case

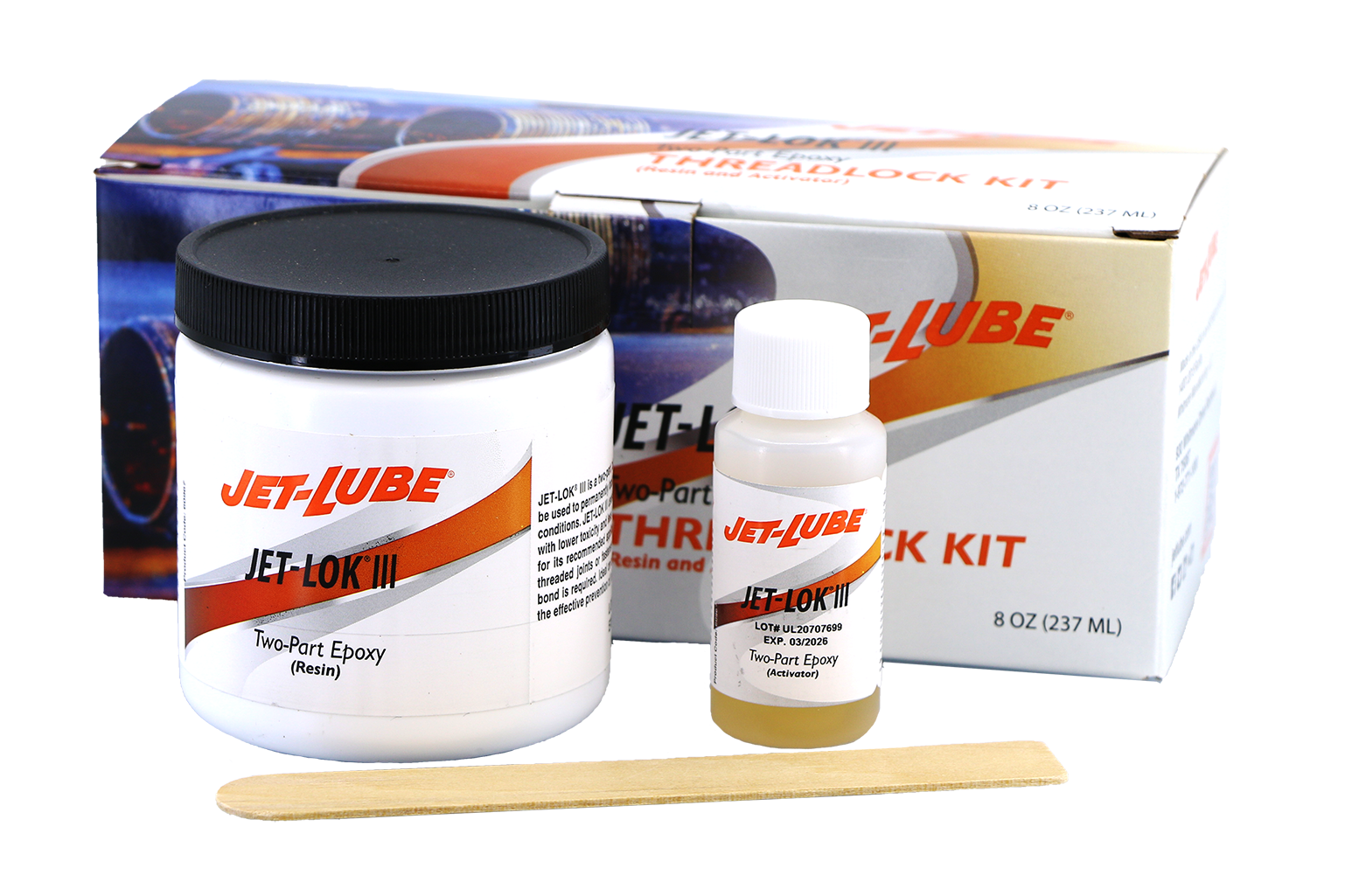

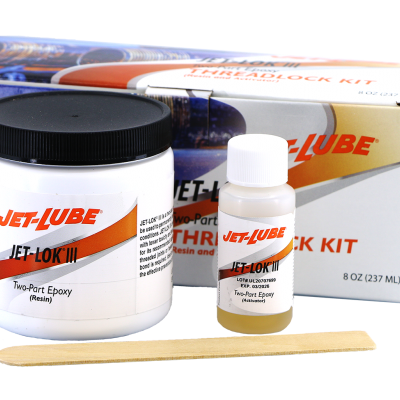

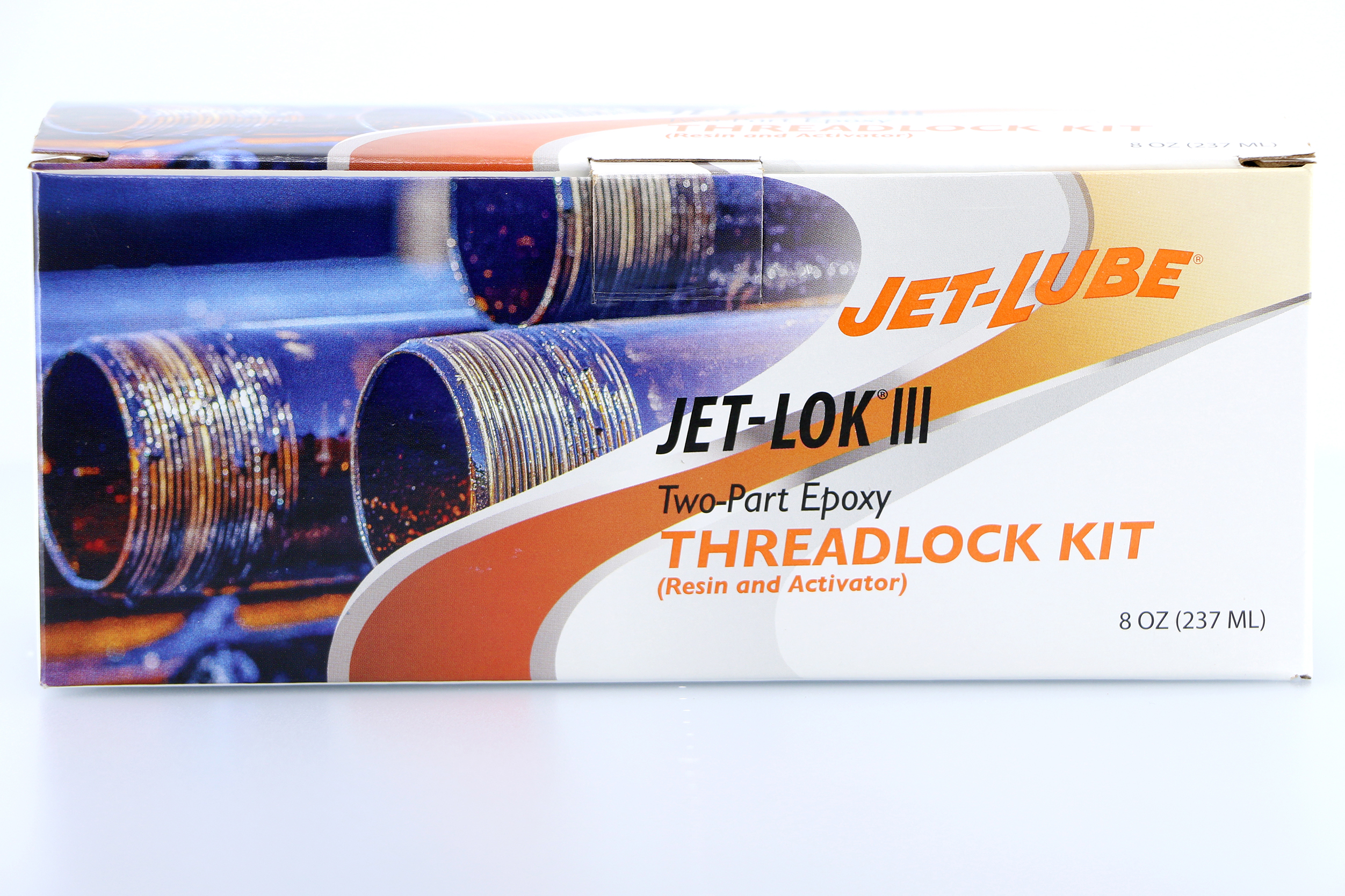

  • 60967 - KIT (Resin & Activator) - 8.6 OZ

United Kingdom

  • JA60934 - HANDY-PAK (Resin & Activator) - 59 ML
  • JA60967 - KIT (Resin & Activator) - 255 ML

Canada

  • 60934CA - HANDY-PAK (Resin & Activator) - 59 ML
  • 60967CA - KIT (Resin & Activator) - 255 ML

Resources

Additional Resources

Frequently Asked Questions

Shear Strength -

2500 to 3100psi

How long to full cure -

1 hour

Work life -

120-180 minutes

Surface Prep -

Remove oil and grease from the surface

Once mixed, how hot does the product get -

Below 150°F (66°C)

Shelf life (not mixed) -

Depending on conditions - 5 years

Temp required to break the joint -

Heat to 500°F (288°C)

What are the clean-up requirements -

None

Service Rating -

400°F (204°C)

Friction Factor -

0.9 to 1.0
