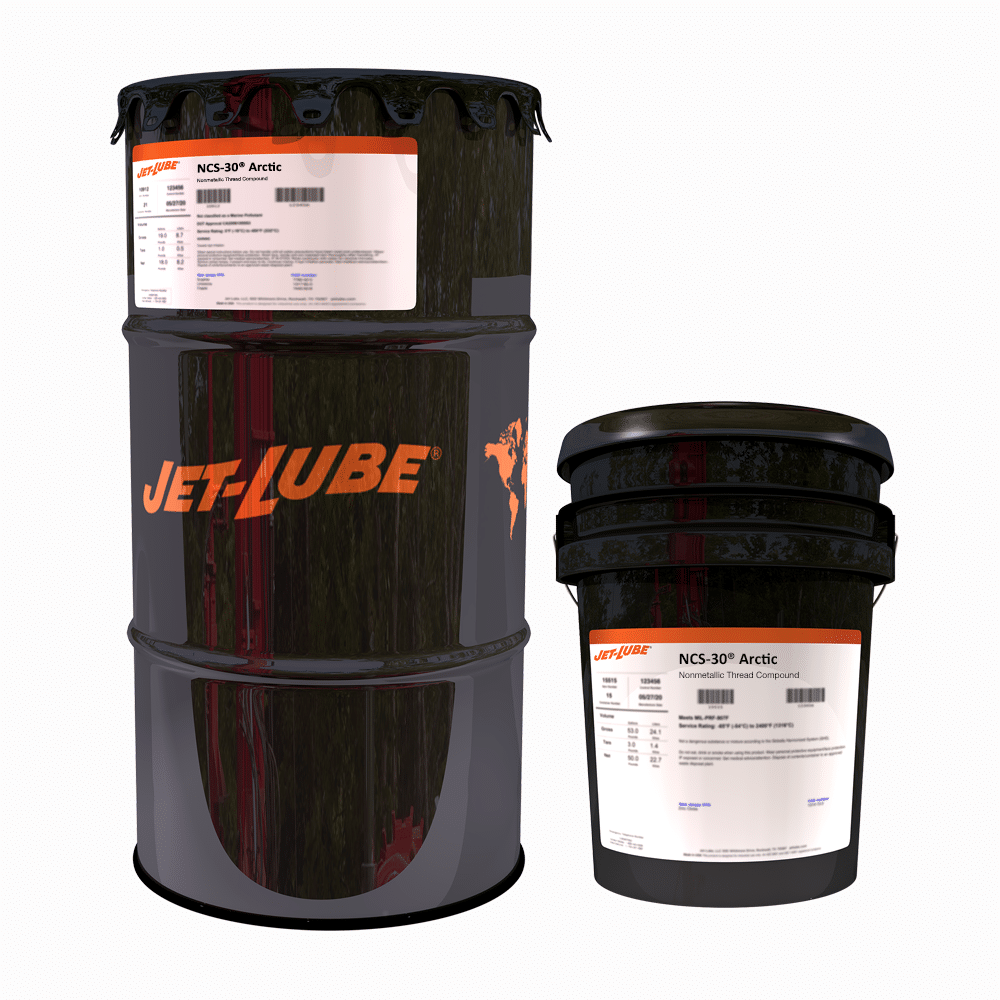

NCS-30® Arctic Nonconductive Thread Compound
NCS-30 ARCTIC is a premium quality, nonmetallic, non-conductive compound containing natural extreme pressure and anti-wear additives. These are blended into JET-LUBE's all-weather calcium complex base grease. This base grease offers the additional advantage of low temperature application and service, superior adhesion to wet steel surfaces, resistance to water wash-off, and most drilling muds. NCS-30 ARCTIC offers the same protection as regular NCS-30, but at lower service temperatures.
Designed for optimum performance on all Rotary-Shouldered connections such as Tool Joints and Drill Collars. It can also be used on premium/proprietary thread designs such as Double-Shouldered, Wedge Thread™*, and other types of mechanical seal designs. It may also be used on certain non-interference tubing thread designs when properly torque compensated.
For a “Yellow”-rated product, use NCS-30 ECF.
Benefits
- Excellent performance on high-chrome or nickel alloys
- Contains no metals
- Extreme-pressure additives provide additional protection against seizing & galling
- Non-conductive for MWD applications
- Provides maximum protection on Wedge Thread* drill string connection designs
- High frictional properties ideal for casing drilling applications
- Pumpability makes it ideal for HDD and other construction drilling applications
Specifications
-
Base Materials
- Calcium Complex / Petroleum
-
Friction /
Nut-Factor- 1.15 (drill strings) (relative to API RP 5A3 Annex I)
-
Certifications
- NSF-61 Certified
- Conforms with API RP 5A3 for use with rotary shouldered connections
-
Service Rating
- Oilfield/Mining/Construction Drilling / -40°F to 350°F (-40°C to 177°C)
- Industrial Anti-seize Applications / -65°F to 2600°F (-54°C to 1427°C)
