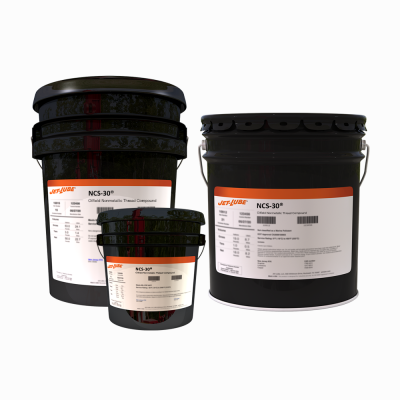

NCS-30®

Nonconductive Thread Compound - NSF H2

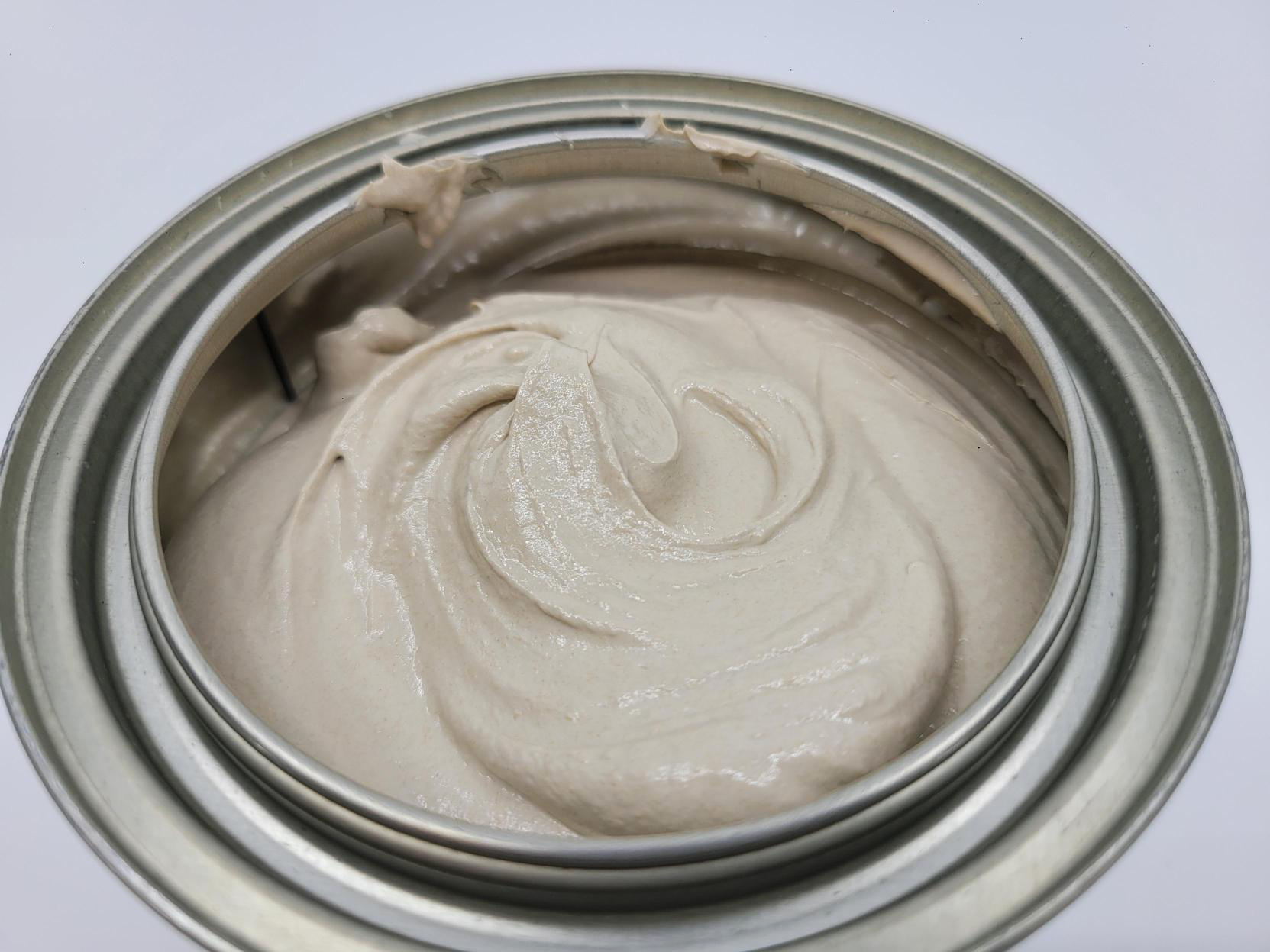

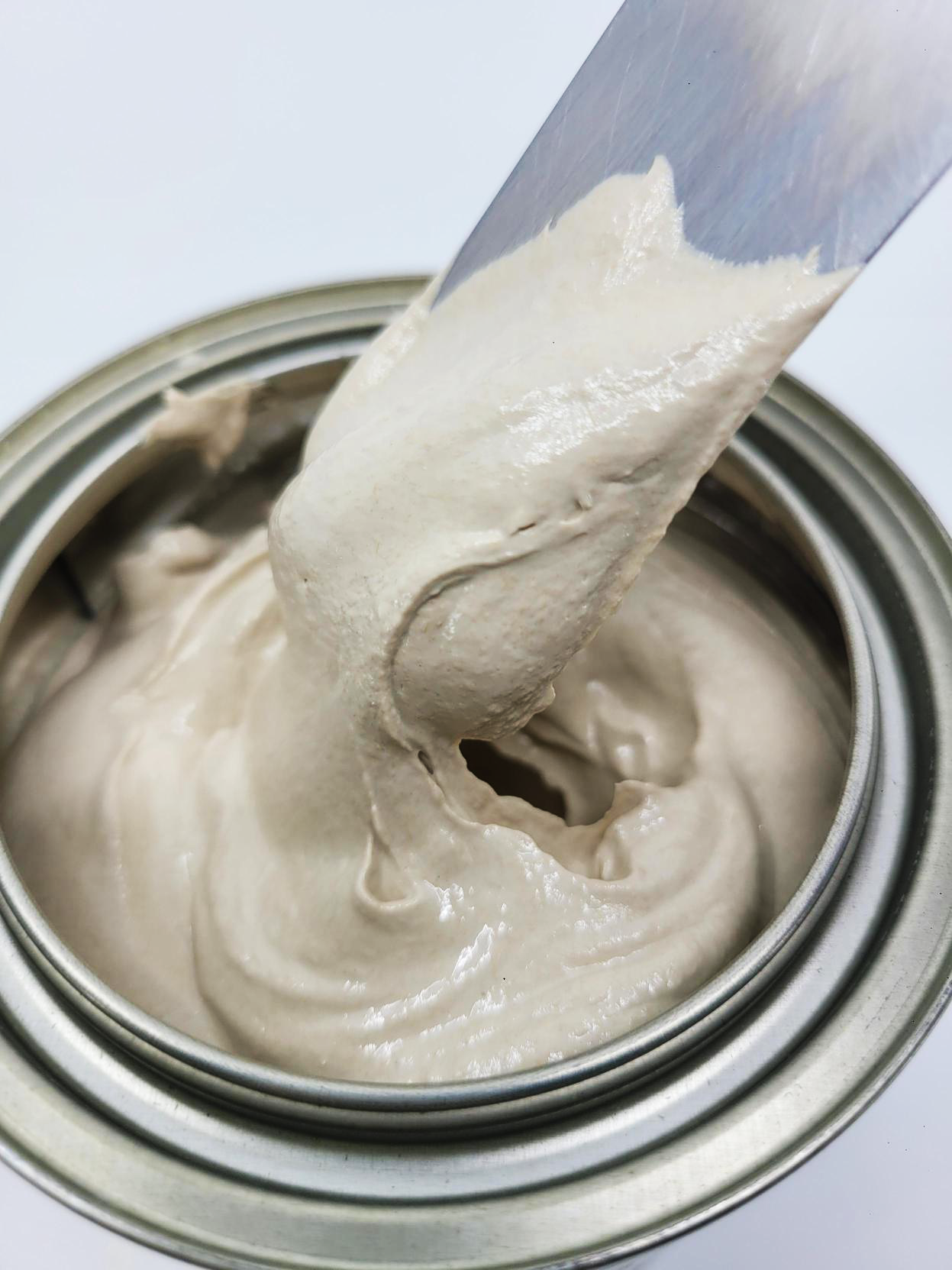

NCS-30® is a premium quality, nonmetallic compound containing carbon based fibers and additives, and other natural extreme pressure and anti-wear additives. These are blended into Jet-Lube's high temp calcium complex base grease. This base grease offers the additional advantage of superior adhesion to wet steel surfaces, resistance to water wash-off, and most drilling muds. It's especially effective for invert or high-pH muds.

NCS-30 is formulated to prevent excessive circumferential makeup by increasing the coefficient of friction under compressive forces. As stress levels rise above 50% of yield, the friction factor increases, limiting downhole makeup. Full hydraulic joint efficiency is maintained, allowing joint shoulder faces to mate completely without standoff or deformation. NCS-30, with frictional properties similar to KOPR-KOTE®, has been designed to utilize the makeup thread manufacturer’s torque multiplied by its 1.15 friction factor on API connections. Premium drill string connections such as HI-TORQUE® (HT), eXtreme® Torque (XT®), and XT-M™ connections, etc., utilize make-up torques based upon thread compound friction factors of 1.0. Therefore, use the torque provided by the premium connection manufacturer. Adjusting make-up torque based on thread compound friction factor may still be advised. Friction factors for NCS-30® were developed using full scale API tool Joint connections.

• Designed for optimum performance on all rotary-shouldered connections such as Tool Joints and Drill Collars. It can also be used on premium/proprietary thread designs such as Double-Shouldered, Wedge Thread™*, and other types of mechanical seal designs. It may also be used on certain non-interference tubing thread designs when properly torque compensated.

Note: For a “Yellow”-rated product, use NCS-30® ECF™.

Benefits

• Non-conductive for MWD drilling applications
• Excellent performance on high-chrome or nickel alloys
• Resistance to high pH drilling fluids / muds
• Contains no metals

• High frictional properties ideal for casing drilling applications
• Provides maximum protection on Wedge Thread™* drill string connection designs
• Extreme-pressure additives provide additional protection against seizing and galling
