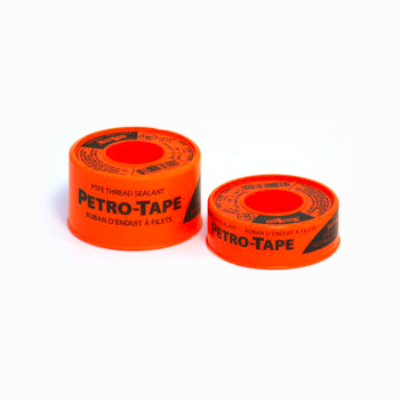

Petro-Tape™ & Petro-Tape™ Nickel
Industrial Grade PTFE Thread Seal Tape

<strong>Petro-Tape</strong> is a rugged, inert and highly resistant tape. It's impervious to steam, salt water, air, fuels, refrigerants, acids and alkalis (including sulfuric, hydrochloric, nitric, sodium hydroxide and chromic), solvents (including kerosene, aircraft oils, gasoline, diesel, carbon tet. and cleaning fluids), gases (including liquid and gaseous oxygen, ammonia, freon, chlorine, propane, natural gas, butane, acetylene and nitrogen). <strong>Petro-Tape</strong> is ≥3-mil thick and contains a light green pigment for easy identification. <strong>Heavy Duty - Ideal For Multipurpose Connections</strong>.

<strong>Petro-Tape Nickel</strong> is a thick, premium-density tape that permits quick, clean sealing of threaded pipe connections. Its PTFE base provides natural lubrication of the joint, while its nickel filler prevents galling of the threads which is common in stainless steel assemblies. <strong>Petro-Tape Nickel</strong> is ≥4-mil thick and contains a gray pigment for easy identification, and distinguishes it from lower density, general purpose thread sealant tapes. <strong>Heavy Duty - Ideal For Multipurpose Connections, Specially Stainless Steel.</strong>
________________________________________________________________________________

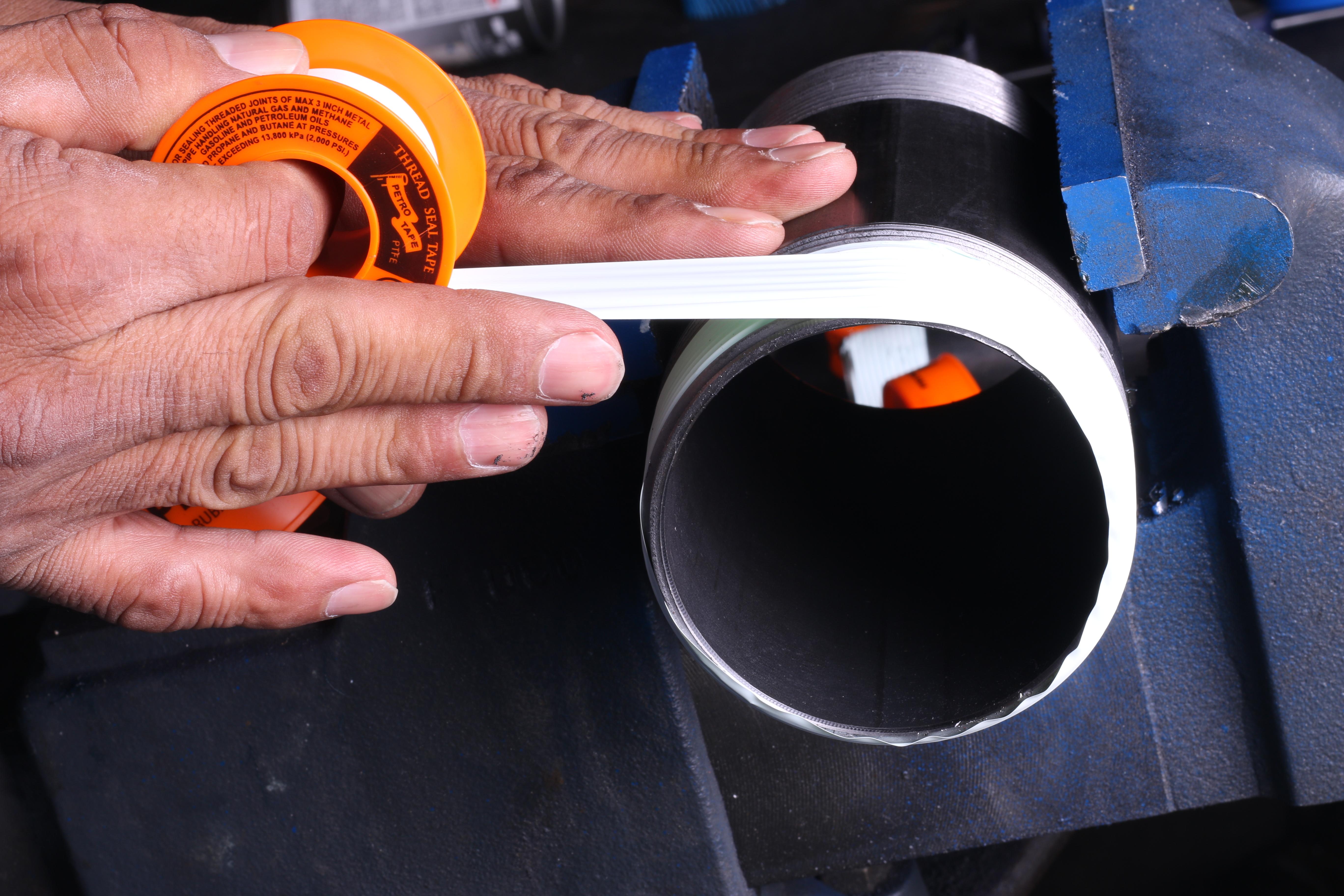

<strong>Petro-Tape</strong> and <strong>Petro-Tape Nickel</strong> are easy, quick and clean to use. Just wrap one turn of tape around the pipe, stretch it to break and join. There is no need to wait. Once assembled the joints are immediately ready for pressure testing or service. Future disassembly is quick and easy. It will not drip, run or dry out. It is ready for instant use, now or years from now, as it keeps its protective qualities indefinitely.

(Suitable for oxygen service.)

Benefits

  • Easy to use
  • Quick & easy tear off – non-fraying
  • Will not drip, run or dry out
  • Ready for instant use
  • Durable
  • Strong
  • Long shelf life
  • Multipurpose
  • Self-Lubricating

Specifications

  • Base Materials
    • Pure, Virgin Polytetrafluoroethylene
  • Certifications
    Product Certification
    • MIL-T-27730A (PETRO-TAPE)
    • Canada ULC Listed (PETRO-TAPE)
    • Pressure Rating - Full Vacuum to 2,000 psi (PETRO-TAPE)
    • CID A-A-58092 (PETRO-TAPE NICKEL)
    • Pressure Rating - Full Vacuum to 10,000 psi (PETRO-TAPE NICKEL)
  • Service Rating
    • -400°F to 500°F / -240°C to 260°C (PETRO-TAPE)
    • -450°F to 550°F / -267°C to 287°C (PETRO-TAPE NICKEL)

Product Numbers

United States

  • 30790 - 200 Rolls/Pack - 1/2” x 180”
  • 30793 - 200 Rolls/Pack - 1/2" x 540”
  • 30794 -200 Rolls/Pack - 3/4" x 540”
  • 30795 -200 Rolls/Pack - 1” x 540”
  • 30893 - 200 Rolls/Pack - 1/2" x 540" (NICKEL)

Canada

  • 30790 - 200 Rolls/Pack - 1/2” x 180”
  • 30793 - 200 Rolls/Pack - 1/2" x 540”
  • 30794 - 200 Rolls/Pack - 3/4" x 540”
  • 30795 - 200 Rolls/Pack - 1” x 540”
  • 30893 - 200 Rolls/Pack - 1/2" x 540" (NICKEL)

Resources

Additional Resources

Other Resources

Frequently Asked Questions

Is it food grade?

Yes

What is it suitable for?

  • Potable Water
  • Oxygen
  • Cryogenics
  • Natural Gas
  • And More...

What's the tape color? Do I need a specific color?

  • Petro-Tape - Light green
  • Petro-Tape Nickel - Gray
  • No specific color is required

Can it be used with Jet-Lube Anti-Seizes?

Yes

Can it be used with Jet-Lube Paste Sealants?

Yes

How many wraps do I need with Petro-Tape?

Less than the competitors= 2-3 wraps. As long as 2-3 wraps of the tape are properly secured to the male threads and the connection is engaged, the required threads beyond the "hand-tight position" there should be no leaks.
