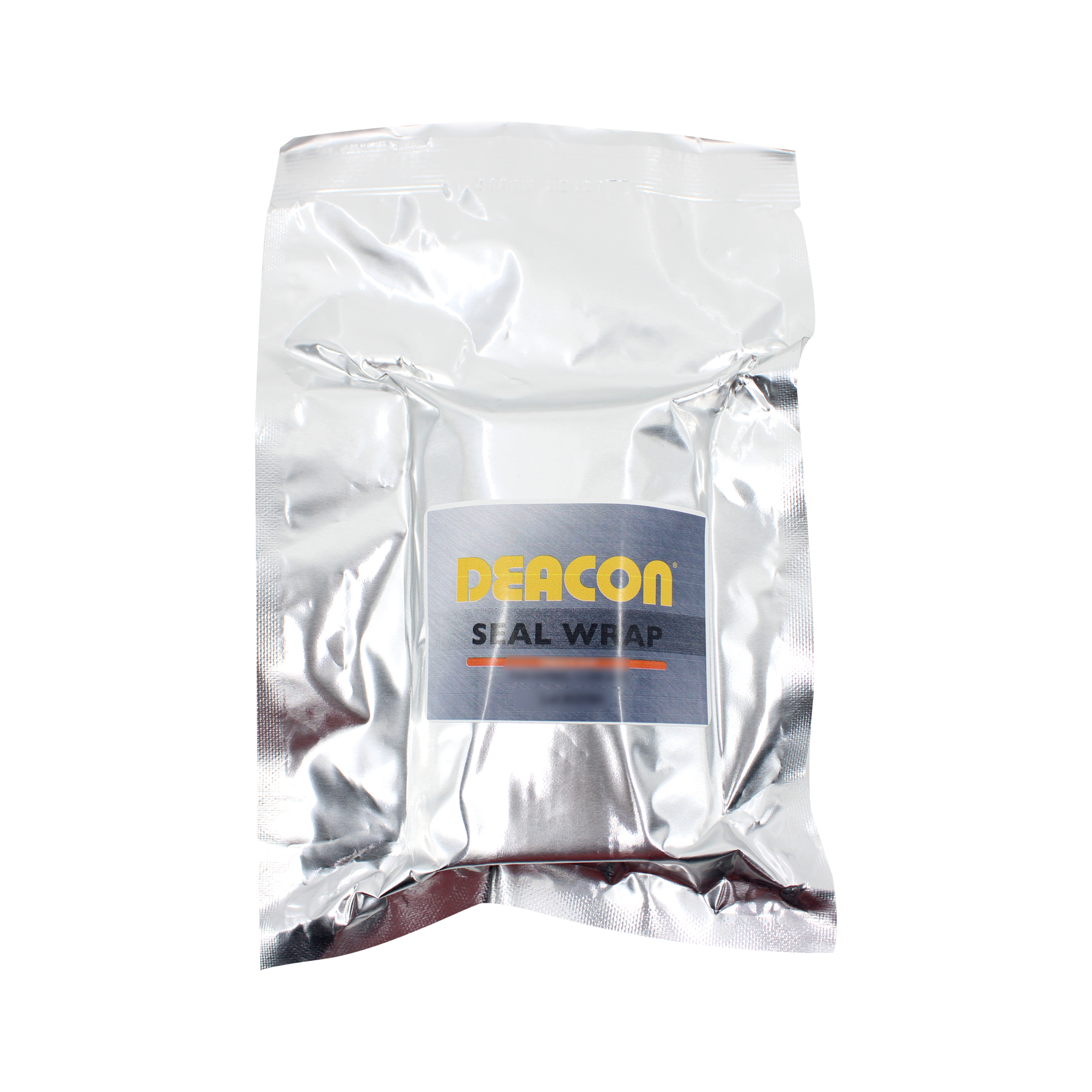

Deacon Seal Wrap & Deacon Seal Wrap FC & SC
Water Activated Wrap

Deacon Seal Wrap solutions are engineered to tackle pipe-related challenges. From fast and slow cure reinforcements to high-temperature resilience, our water-activated fiberglass wrap system ensures your pipes, tanks, and pressure vessels are fortified, sealed, and maintained.

Available in 3 Versions -

<img src="/assets/images/deacon-seal-wrap-table.png" alt="Deacon Seal Wrap Table | Jet Lube" />

_________________________________________________________________________

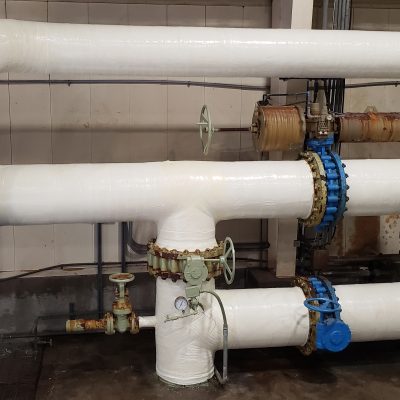

SEAL WRAP is a high temp water activated fiberglass wrap system with extreme chemical resistance that is specifically designed to seal, repair, patch, or strengthen any type of pipes, tanks, or pressure vessels. It can be used for rapid reinforcement of stop-gaps and temporary leak repairs.

SEAL WRAP is commonly used as an additional barrier layer to prevent sealant from breaching thin wall piping during the installation of a leak repair clamp or enclosure.

Cure time at 77°F (25°C): 15 minutes

Available Sizes:
2” x 30 ft.
4” x 15 ft.
4” x 30 ft.
6” x 25 ft.
(Additional widths and lengths available upon request.)

_________________________________________________________________________
SEAL WRAP FC is a fast curing pre-impregnated fiberglass composite that is activated and cured by
water. Designed for leak sealing, reinforcement of piping and structural supports experiencing wall-loss
due to corrosion/erosion, and protection against impact and abrasion. SEAL WRAP FC restores pipe
and critical infrastructure to its original operating pressure.

Cure time at 77°F (25°C): 5 minutes

Available Size:
4” x 15 ft.

_________________________________________________________________________
SEAL WRAP SC is a slow curing pre-impregnated fiberglass composite that is activated and cured by
water. Designed for leak sealing, reinforcement of piping and structural supports experiencing wall-loss
due to corrosion/erosion, and protection against impact and abrasion. SEAL WRAP FC restores pipe
and critical infrastructure to its original operating pressure.

Cure time at 77°F (25°C): 30 minutes

Available Size:
4” x 30 ft.

<img src="/assets/images/deacon-seal-wrap-chemical-resistance-table.png" alt="Deacon Seal Wrap Chemical Resistance Table | Jet Lube" />
_________________________________________________________________________
ADD-ON

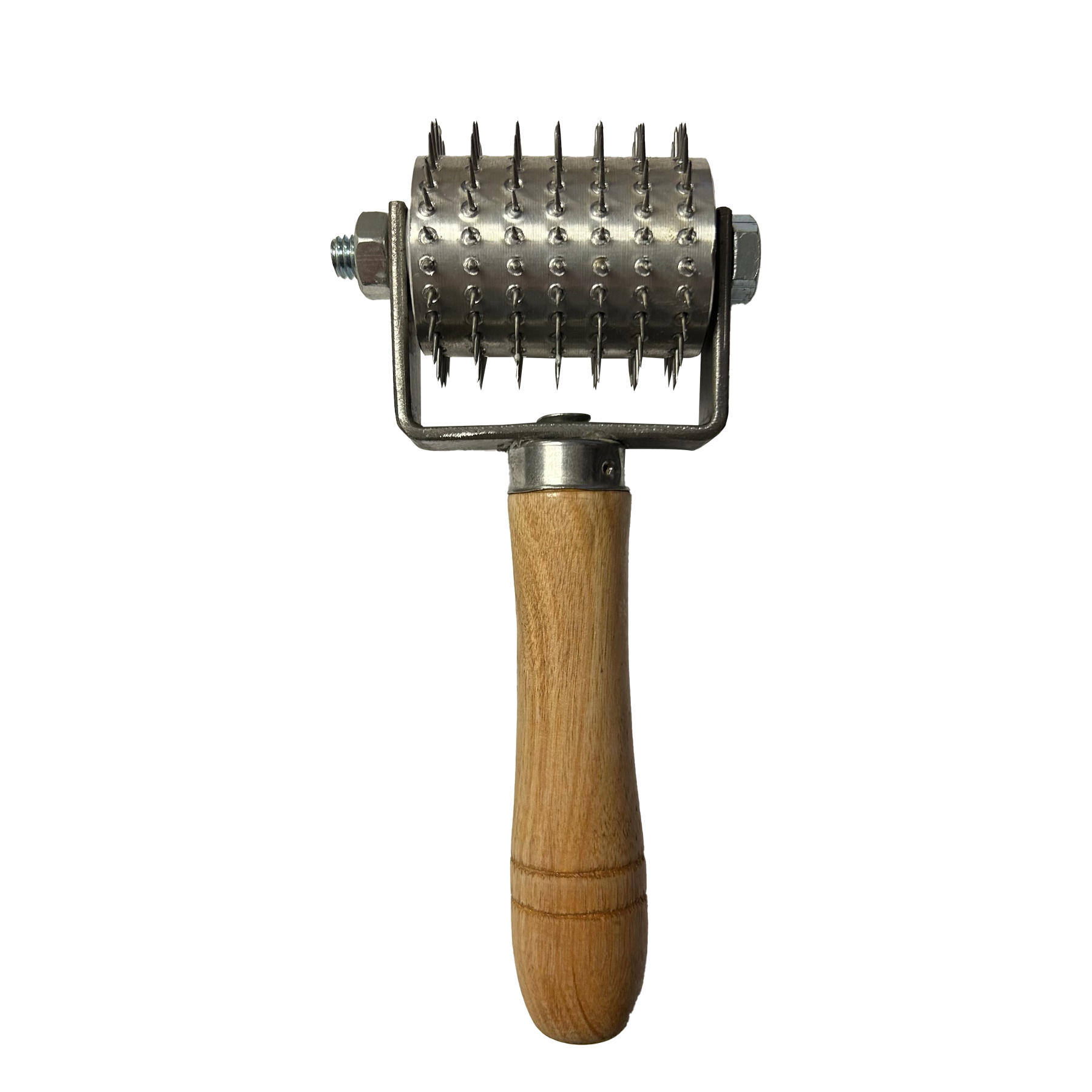

Seal Wrap Roller
(Used to poke holes in Deacon Jacket Wrap after it's applied to the outside of water activated wrap.)

Benefits

  • Quick and easy installation
  • Strong, permanent, economical
  • Cure in minutes
  • Restores piping beyond original capacities
  • Safe, nontoxic
  • Odorless
  • Impervious to water, oils, chemicals, solvents, and acids
  • (FC & SC) Can be applied in fresh water or salt water
  • (FC& SC) Can be applied in splash zones and in submersible situations to a depth of 50 ft.
  • (FC & SC) Easy to use, no mixing
  • (FC & SC) Excellent resistance to high impacts and heavy abrasion
  • (FC & SC ) Excellent return to service time
  • (FC & SC) Woven fabrics provide high tensile strengths and increased impact resistance
  • (FC & SC) UV Stable

Specifications

  • Service Rating
    • Service: Up to 425°F (218°C)
    • Application: Up to 200°F (93°C)
    • (FC & SC) Service: 250ºF (120ºC)
    • (FC & SC) Application: Minimum Temperature* 32ºF (0ºC) Maximum Temperature* 180ºF (82ºC)

Product Numbers

United States

  • 111-SW 2X30 - 2” x 30' Roll
  • 111-SW 4X15 - 4” x 15' Roll
  • 111-SW 4X30 - 4” x 30' Roll
  • 111-SW 6X25 - 6” x 25' Roll
  • (FC) 111-FC 4X15 - 4” x 15' Roll
  • (SC) 111-SC 4X30 - 4” x 30' Roll
  • 111-ROLLER - Seal Wrap Roller

Canada

  • 111-SW 4X15CA - 4” x 15' Roll
  • 111-SW 4X30CA - 4” x 30' Roll
  • 111-SW 6X25CA - 6” x 25' Roll
